VS500S non-invasive ventilator

VS500S non-invasive ventilator Care the Future Carry the Hope

VS500S is a specially designed non-invasive ventilator for premature infants, neonates, and pediatric patients.
It provides comprehensive non-invasive ventilation to meet various respiratory management requirements.

Affinity Design 10.4” highly sensitive capacitive touchscreen
· High resolution
· User-friendly interface
· No hidden menus
Rounded chamfer appearance
· Emphasis on humanistic care, more affinity
Screen tilt structure
· Larger observation angle, ergonomic design, and more convenient clinical operation
Quick-detachable structure
· Easy to use on the ceiling pendant system

Download product data

Safety and Effective Neonatal Ventilation Technology VS500S offers 4 types of ventilation mode, which can fully meet various clinical requirements.
NCPAP appears to stabilize the chest wall and upper airway and to reduce apneas, and early application of CPAP might also preserve surfactant;
NIPPV is associated with a significantly decreased need for intubation, including among extremely preterm infants;
SNIPPV can improve the stability of the chest wall and pulmonary mechanics, and it can be a means to wean infants from mechanical ventilation;
HFNC is to optimize spontaneous breathing through the reduction of dead space and the creation of positive distending airway pressure.

Download product data

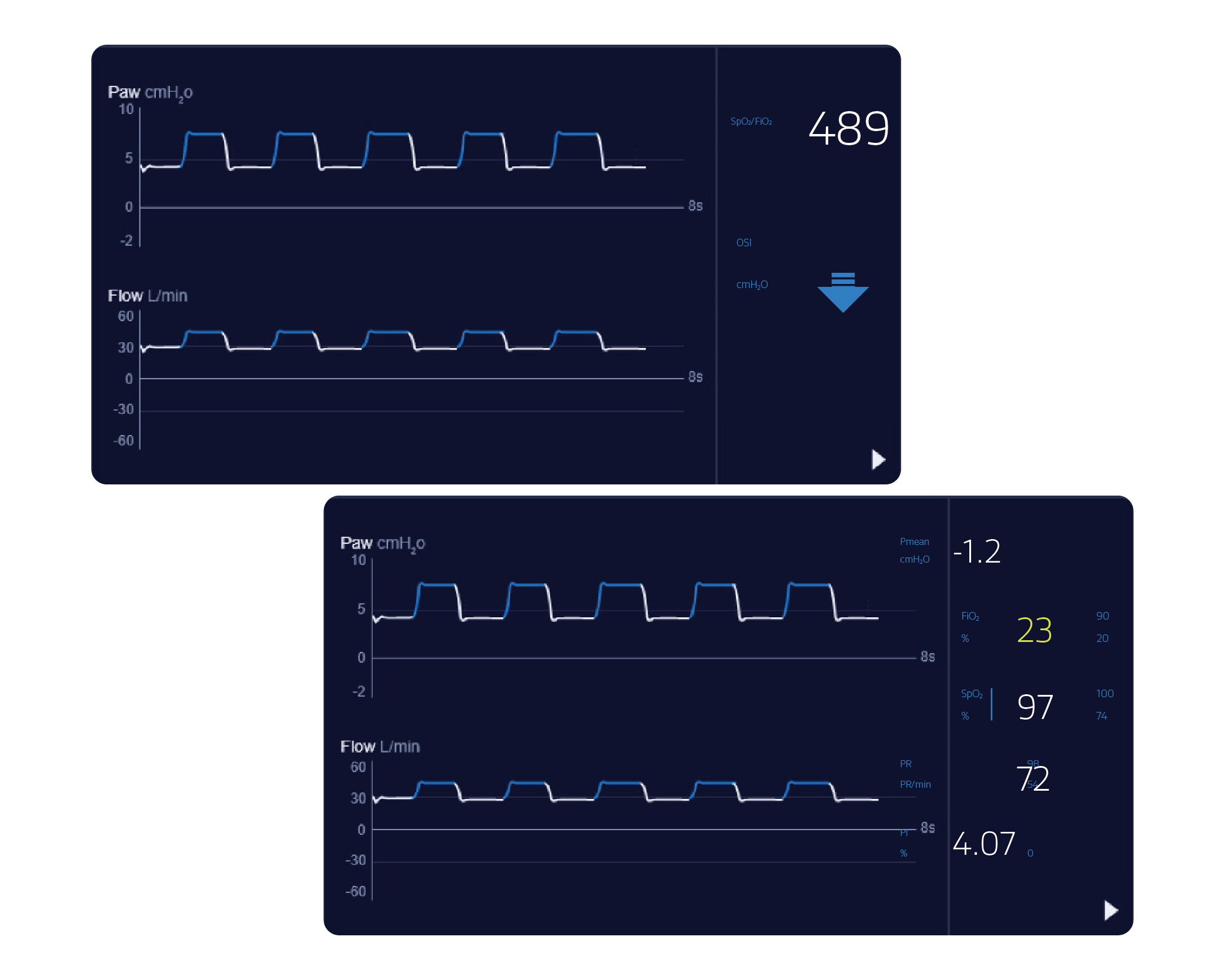

Real-time Monitoring Assures Patient Safety With an integrated SpO2 module, the VS500S enables real-time monitoring of indicators such as SpO2/FiO2, PI, OSI and ROX, accurately assessing patients' oxygenation status and providing more references for clinical decisions.

Download product data

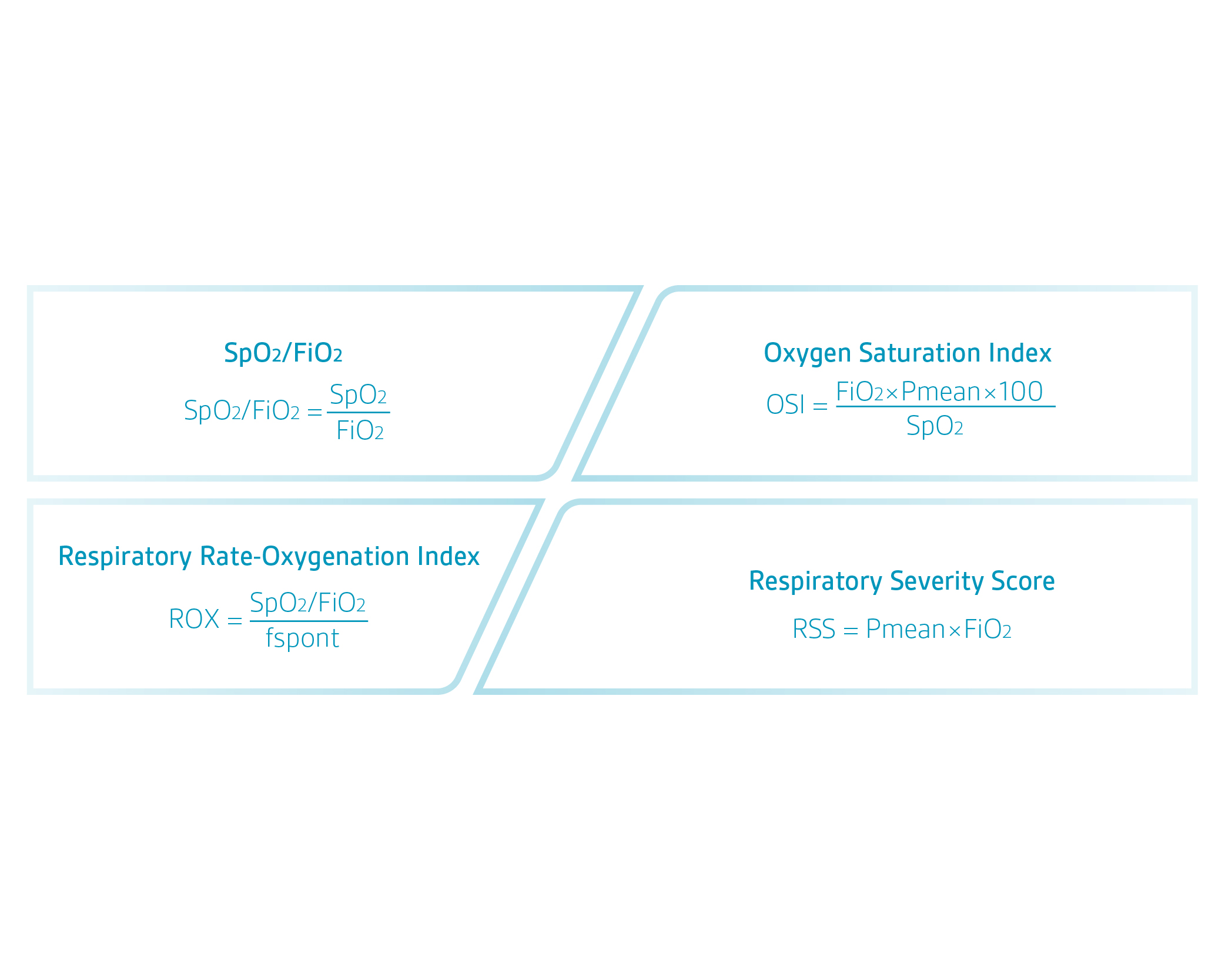

Oxygenation-Related Indicators SpO2/FiO2
· The SpO2/FiO2 is an independent indicator of ARDS development among patients at risk.
OSI
· OSI is a non-invasive tool for monitoring Hypoxemic Respiratory Failure in newborns. ROX index
· ROX index could be effective at predicting the failure of HFNC therapy in infants. RSS
· RSS is a non-invasive surrogate for the Oxygenation Index (OI). And RSS is an effective predictor of BPD or death in intubated preterm infants.

Download product data

Technical specification
Dimensions (W x D x H)	300 x 338 × 343 mm (main unit) 597 x 566 x 951 mm (trolley) 525 x 516 x 951 mm (trolley with air compressor) 597 x 566 x 1282 mm (incl. trolley)
Weight	Main unit (including battery): 11 kg Trolley: 24.5 kg
Screen size and resolution	10.4” capacitive color touch screen; 800 x 600 pixels
Battery operating time	Minimum 4 hours
Air and O2 connector	DISS, NIST; 200-650 kPa (29-94 psi)
Communication port	Nurse call port, Ethernet Port, R232 port, USB port
