AG70 Anesthetic Workstation

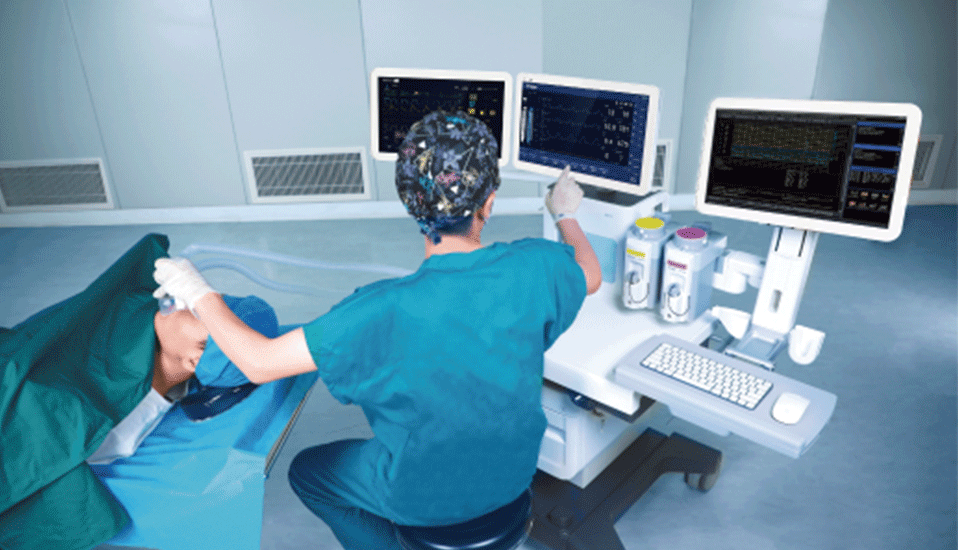

AG70 Anesthetic Workstation AG70 is a high-end anesthetic workstation designed to offer a better experience for clinicians, a safer guarantee for patients, a smarter partner for operating rooms (ORs), and a greener friend for the planet.

Digital Flowmeter with ECO-Optimizer The digital flowmeter streamlines the settings of fresh gas flow, enhancing both the ease and precision of the process. The ECO-Optimizer indicates the recommended fresh gas flow setting according to the set value and the patient's minimum required O2. It enables a safe low - flow operation and reduces the waste of agents and gases.

Download product data

The coil breathing system In the absence of moving components, the risk of malfunction is reduced, ensuring highly reliable operation and an extended service life. Due to its small system volume, it enables rapid wash-in and wash-out. The entire Al-Mg alloy circuit can be removed without tools and is suitable for autoclaving to ensure sterilization. It is equipped with heating and CO2 bypass capabilities for enhanced functionality.

Download product data

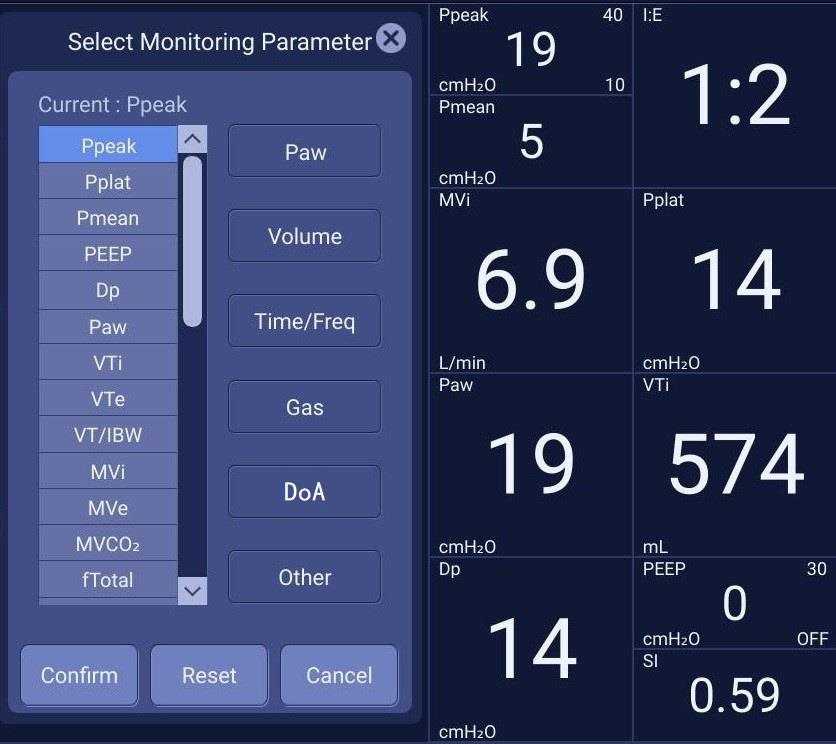

Comprehensive Monitoring and Customizable Interface Comprehensive monitoring of more than 30 parameters, including PAW, volume, gas concentration, DoA, etc. Up to 16 parameters can be displayed on the same screen simultaneously. The customizable interface layout enables clinicians to organize monitoring data according to the workflow.

Download product data

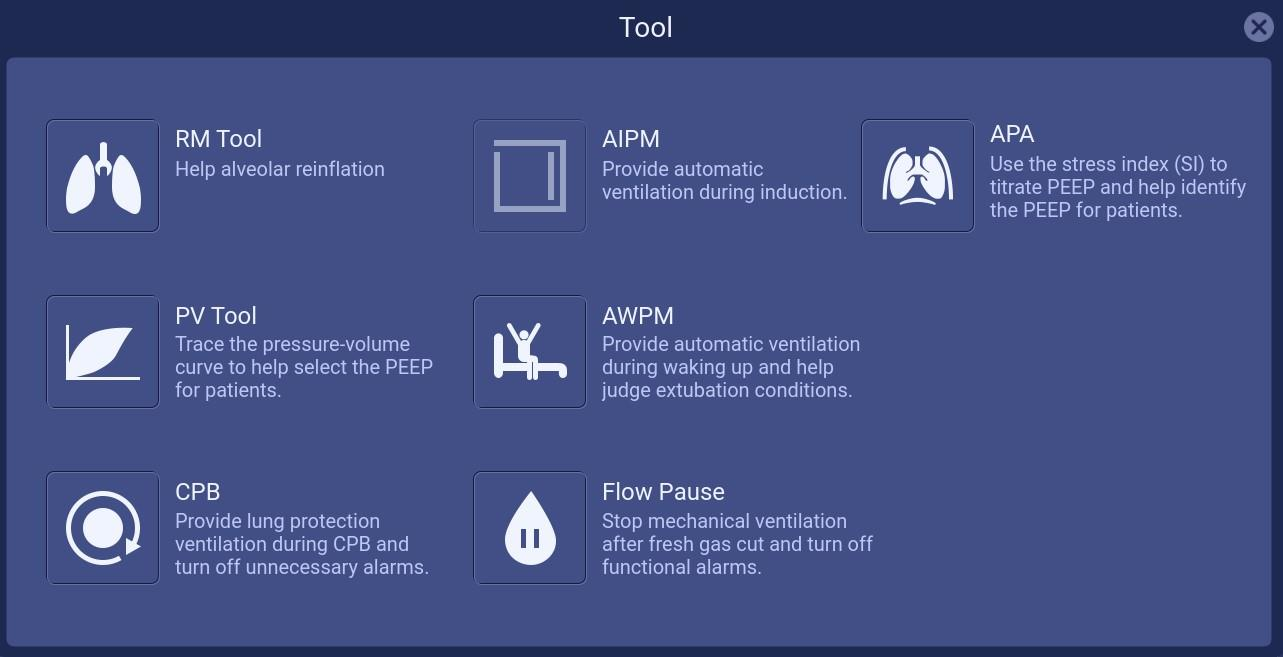

Robust and Innovative Clinical Tools In addition to facilitating lung - protective ventilation and anesthesia depth monitoring, the AG70 provides robust and innovative clinical tools, including the recruitment maneuver tools, the PEEP titration tools, and induction/wake-up aids. These tools not only enhance clinicians' working experience but also significantly improve patient outcomes.

Download product data

Technical specification
Dimensions	1420 x 912 x 720mm (H x W x D)
Weight	110kg(Excluding vaporizers)
Gas supply	O₂, N₂O, Air; 280 - 600 kPa
Flowmeter	Electronically controlled mixer
Vaporizer installation	Selectatec® with interlock
Screen	18.5” TFT color touch screen
Ventilation modes	Standard: VCV, PCV, Manual; optional: PCV-VG, SIMV-VC, SIMV-PC, SIMV-VG, PS/CPAP, BIVENT, APRV, VSV
